Part #: 210-0215

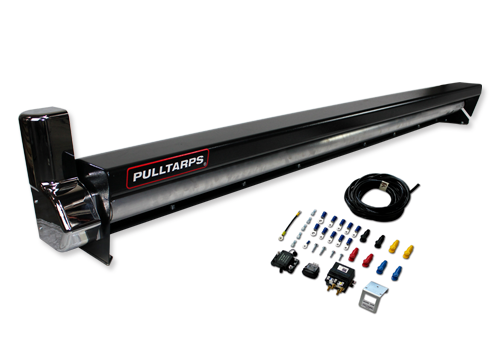

SuperShield™ 9500E System

$749.00

Qty

This is the strongest, most durable Automatic Tarp System available in the industry. The fully-welded 12 gauge steel construction offers the best protection from falling debris. Designed for longer applications up to 40 feet. The external ratcheting spring adjustment allows for easy spring tension in the field.

Includes: System, Housing, Pivot, Electrical, and Tarp

Starting Price: $1560

Description

Housing

  • Holds up to 40 feet of tarp
  • Galvanized Roller Tube
  • Black Powder Coated Finish
  • Fully welded 12 gauge steel
  • Aluminum or Steel Mounting brackets

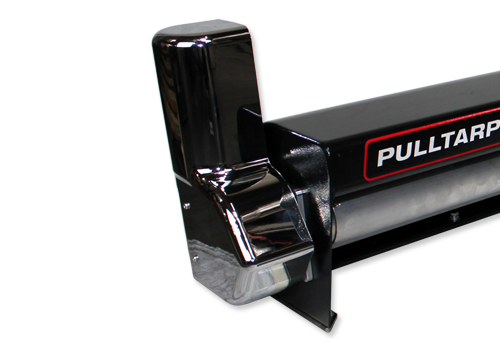

Pivot

There are two pivot options. The Fully Enclosed 4 Spring pivot is for smaller applications while the Single Spring Pivot is for larger applications.

Enclosed 4 Spring Pivot (Small)
  • For applications up to 22 feet
  • UHMW Bushings for smooth operation
  • Compact and fully enclosed spring housing
  • Can be mounted in the High or Low positions
Single Spring Pivot (Large)
  • For applications up to 40 feet
  • UHMW Bushings for smooth operation
  • Fully Enclosed Spring Housing
  • Available with steel or aluminum arms

Electrical

The 1.3HP Pulltarps™ Motor and 12V Deluxe Smart Switch is recommended for the SuperShield™ 9500E.

1.3 Horse Power HD Electric Pulltarps® Motor
  • Can be operated wireless remote control, in-cab, or external switch
  • Three year prorated warranty
Deluxe Smart Switch™
  • The Breaker is waterproof and has larger contact points
  • The relay is of a higher amperage and has soldered coil leads to the connections points

Tarps

Pulltarps™ offers 4 types of tarping materials, from our least expensive HD Mesh, our Super Heavy Duty Mesh, 18oz. Waterproof Vinyl, and 400° rated Asphalt Vinyl

  • Heavy Duty Mesh is vinyl coated polyester mesh with an open weave
  • Super HD Mesh is 18oz. vinyl coated polyester mesh fabric with a double weave
  • 18oz. Waterproof vinyl is seamless and full width
  • Asphalt Vinyl is 14oz. 400 degree rated material with a urethane coating
Featured Video

Additional information

Weight 250 lbs
Dimensions 109 × 16 × 10 in
