This vehicle class includes your off-highway haul trucks & dumpers at 53,000+ lbs of rigid-frame and articulating-frame iron built for mining, quarry, and heavy dirt work. These are the largest, most specialized class we serve. Automatic systems are the only realistic answer, and every one is custom-fit to the machine.
GVWR: 53,000+ lbs
Frame Types: Rigid & Articulating
Recommended System: SuperShield™ 9500E

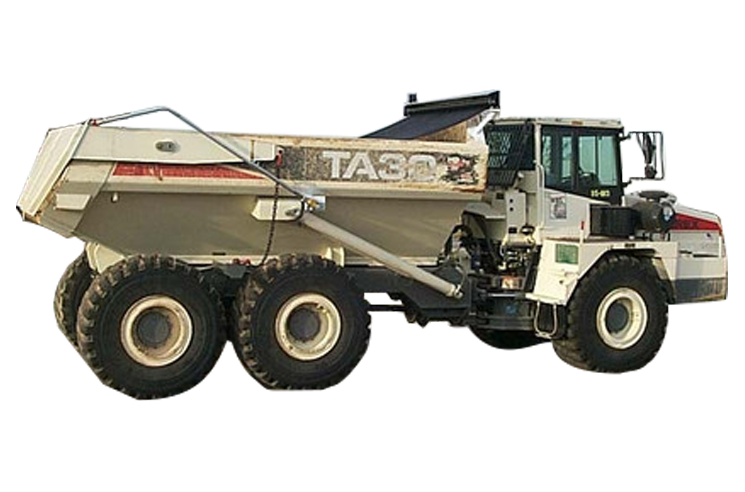

Articulated (Off-Highway) dump trucks are heavy construction equipment and share little resemblance to highway dump trucks. Bigger off-highway dump trucks are used strictly off-road for mining and heavy dirt hauling jobs. There are two primary forms: rigid frame and articulating frame. The term “dump” truck is not generally used by the mining industry, or by the manufacturers that build these machines. The more appropriate U.S. term for this strictly off road vehicle is “haul truck” and the equivalent European term is “dumper”.
Class 9 Weight Limit: 53,000 pounds
At a Glance
Weight Class
53,000+ lbs
Use
Off-Highway / Mining
Frame Types
Rigid, Articulating
Recommended System
SuperShield™ 9500E
Typical Materials
Overburden, Ore, Dirt
Class 9 machines are large off-highway iron, so every system is configured to your frame size and bed length. These three automatic systems are the starting points; our team specs the housing, arm length, and mount to the exact truck.
Automatic · Best
With its heavy-duty 12-gauge steel housing and 1.3 HP electric motor, our flagship systems caters to the longest, heaviest beds. Scale it up and custom-mount it for your rigid and articulating haul trucks. Comes with a 1-year warranty on moving parts.

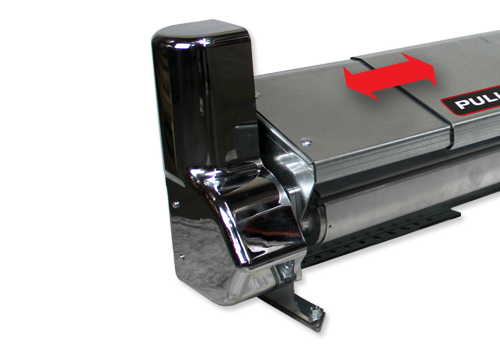

Automatic · Better
Automatic · Good

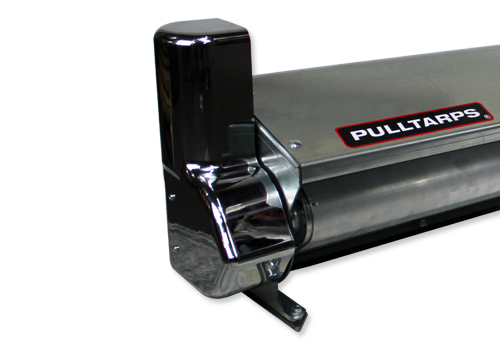

Our Steel Protector +™ Automatic Tarp System is designed for longer applications that require some protection from falling debris. The Steel Protector+ holds 28′ of tarp and works with all types of dump truck bodies. It includes a steel bolt-in spring shaft anchor, mounting brackets, tarp roller tube, system housing, arm pivots, 1.3 HP electric motor, and smart switch kit.
Because Class 9 trucks are off-highway machines, fitment is always custom — frame size, bed length, and mounting points are measured per truck. Call our team before ordering so we can spec the arm length and housing to your exact haul truck.
Already Have A System?
Built for abrasion and covering a large load, our HD Mesh tarps come in large-format sizes for articulated trucks. Mining and quarry work wear out tarps, so HD Mesh is your best bet, since it is lighter, less expensive and stands up to wear and tear. Sizes are custom-cut to the box size.
Reference
Find the right tarp system for every truck and trailer class we serve.
Compare
How the three Pulltarps system families differ and which fits your work.
Compliance
The federal rule plus a state-by-state breakdown of load-covering laws.
Questions operators ask about tarping off-highway articulated and rigid-frame haul trucks.
On public roads, federal regulation 49 CFR § 393.100 and state cargo-securement laws require covered loads, but Class 9 haul trucks usually work strictly off-highway, where the requirement is driven by the site’s mining or environmental rules instead. Many quarries and mines mandate dust suppression and load coverage on haul roads. Check the federal and state rules in our regulations guide, then confirm your site’s own requirements.
Yes. Articulating trucks bend at a hinge between the cab and bed, so the system has to be mounted to clear that pivot and stay clear through the full range of articulation. We spec the arm length, housing position, and mount per machine, so it’s a custom fit, not an off-the-shelf bolt-on. Send us your make, model, and bed dimensions and we’ll engineer the fitment.
There’s no standard part number for Class 9. These are large off-highway machines and every fitment is custom. We size to your frame, bed length, and bed width, then select the housing and tarp material to match. Measure the Inside and Outside dimensions of your box and the overall box length before you call, so we can spec it accurately.
For overburden, ore, and dry aggregate, HD Mesh and Super HD Mesh are the durable choices. The avoid fines, resist abrasion, and let dust and water pass instead of pooling. Vinyl is the pick when you need a fully sealed cover. Sustained abrasive loads wear any tarp, so mesh typically gives the longest service life on a haul truck.
A Class 9 bed is far too large and too high to safely hand-pull a cover, and these trucks cycle heavy loads all day. An automatic system covers the dump body from the safety of the cab in seconds, so there’s no need to climb a machine of this size. Manual and semi-automatic covers aren’t a realistic option at this weight class.
Moving parts of the Pulltarps® branded Automatic Arm Systems carry a 1 year limited warranty. Pulltarps® electric motor (517-5909) carries a 5-year limited warranty. Because Class 9 fitment is custom and the machines are large, installation should be done by an authorized installer who can mount and wire the system correctly. Find one with our installer locator, and read the full warranty terms.
